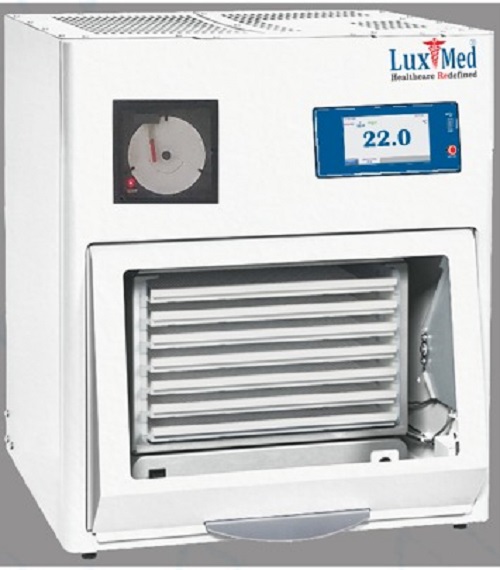

Send InquiryLuxMed Platelet Storage System
Price 120000.0 INR/ Set
MOQ : 1 Number
LuxMed Platelet Storage System Specification
- Control Type
- Microprocessor based Temperature Control
- Display Type
- Digital LED Display
- Power Supply
- 230V AC, 50 Hz
- Speed Range
- Adjustable Speed Agitator: 602 RPM
- Temperature Resistance
- Room temperature maintenance 22C 2C
- Shape
- Rectangular
- Glass Type
- Double insulated glass door
- Accuracy
- 0.5C °C
- Features
- Audio-visual alarm system, battery backup, castor wheels, Low noise, Smooth vibration free operation
- Type
- Platelet Storage System
- Dimension (L*W*H)
- 780 x 625 x 840 mm Millimeter (mm)
- Equipment Type
- Blood Bank Equipment
- Equipment Materials
- Stainless Steel External Body, Powder coated steel inner chamber
- Power
- 200 W Watt (w)
- Voltage
- 220V AC, 50Hz Volt (v)
- Material
- Stainless Steel
- Application
- Platelet Storage in Blood Banks and Hospitals
- Capacity (Ltr)
- 60 L Liter (L)
- Controller
- Programmable Logic Controller (PLC) with safety interlocks
- Tray Size
- 420 x 320 mm per tray
- Shelves
- 5 Removable Trays with adjustable spacing
- Battery Backup Time
- Up to 8 Hours for Alarm System
- Operating Temperature Range
- 20C 24C
- Warranty Service Type
- Onsite
- Humidity Control
- In-built Humidity Retention System
- Mobility
- Heavy-duty castor wheels for easy movement
- Noise Level
- <60 dB
- Door Lock
- Key lock for added security
- Usage
- Continuous 24/7 operation
- Alarm Types
- Door open alarm, Temperature deviation alarm, Power failure alarm
- Lighting
- Internal LED illumination
- Operating Environment
- Non-corrosive, Clean Room
- Cabinet Insulation
- High-density PUF insulation
- Compliance
- CE & ISO 13485 Certified
LuxMed Platelet Storage System Trade Information
- Minimum Order Quantity
- 1 Number
- FOB Port
- Ambala
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 1 Number Per Week
- Delivery Time
- 2 Week
- Sample Available
- No
- Sample Policy
- If order is confirmed we will reimburse the sample cost
- Packaging Details
- wooden packaging
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
- Certifications
- CE , ISO , MSME and Startup India
About LuxMed Platelet Storage System
Experience the illustrious LuxMed Platelet Storage System, engineered for exceptional preservation in blood banks and hospitals. This exclusive unit features five removable trays with adjustable shelving to accommodate various storage needs. Highlighted by an incomparable battery backup up to 8 hours for uninterrupted alarm systems, its advanced programmable controller ensures precise temperature control at 22C 2C. Instant checkout and smooth operation are secured with heavy-duty castor wheels, while the robust stainless steel build and high-density insulation guarantee lasting performance. CE and ISO 13485 certified, this distinguished solution elevates safe platelet storage to unparalleled standards.
Contemporary Solution for Platelet Storage Excellence
The LuxMed Platelet Storage System stands out with its application in blood banks and hospitals, tailored for platelet preservation. Its key features include adjustable removable trays, advanced humidity and temperature management, and high-density insulation for reliability. The system is crafted for use in non-corrosive, clean room environments, supporting 24/7 continuous operation. With internal LED illumination, power backup, and an audio-visual alarm system, this storage unit ensures top-tier safety and operational consistency in medical settings.
Swift Delivery and Reliable Handover Process
The LuxMed Platelet Storage System offers a streamlined handover, including careful packing & dispatch within a promising delivery window, subject to valuation and supply ability. Sample units are available for evaluation, ensuring clients assess suitability accurately. Our supply chain is robust, sustaining consistent availability for bulk or priority needs. Every transaction, from order placement to final setup, is handled with utmost professionalism to guarantee the timely and secure arrival of your essential equipment.
Contemporary Solution for Platelet Storage Excellence
The LuxMed Platelet Storage System stands out with its application in blood banks and hospitals, tailored for platelet preservation. Its key features include adjustable removable trays, advanced humidity and temperature management, and high-density insulation for reliability. The system is crafted for use in non-corrosive, clean room environments, supporting 24/7 continuous operation. With internal LED illumination, power backup, and an audio-visual alarm system, this storage unit ensures top-tier safety and operational consistency in medical settings.
Swift Delivery and Reliable Handover Process
The LuxMed Platelet Storage System offers a streamlined handover, including careful packing & dispatch within a promising delivery window, subject to valuation and supply ability. Sample units are available for evaluation, ensuring clients assess suitability accurately. Our supply chain is robust, sustaining consistent availability for bulk or priority needs. Every transaction, from order placement to final setup, is handled with utmost professionalism to guarantee the timely and secure arrival of your essential equipment.
| Model Number | LM-PIC-100TC | LM-PIC-900TC | LM-PIC-1200TC |
| Temp Range / Set point | +20 to +35C / 22C | +20 to +35C / 22C | +20 to +35C / 22C |
| Electrical | 120-240V 50/60Hz | 120-240V 50/60Hz | 120-240V 50/60Hz |
| Interior Dimensions w x h x d in. / mm | 18.5 x 16.2 x 10.7 inch 469 x 411 x 271 mm | 23.8 x 19.9 x 18.9 inch 604 x 505 x 480 mm | 37.9 x 19.9 x 18.9 inch 962 x 505 x 480 mm |
| Exterior Dimensions w x h x d in. / mm | 20.8 x 26.4 x 16.9 inch 528 x 670 x 429 mm | 26 x 29.7 x 26 inch | 40.3 x 29.7 x 26 inch 1023 x 753 x 766 mm |
| 661 x 753 x 661 mm | |||
| Net Weight lb / kg | 116 / 53 | 136 / 62 | 173 / 79 |
FAQ's of LuxMed Platelet Storage System:
Q: How does the LuxMed Platelet Storage System control temperature and humidity?
A: The system uses a programmable logic controller (PLC) for accurate temperature regulation within 22C 2C, supported by a microprocessor-based control. An in-built humidity retention system ensures optimal environmental conditions for platelet storage.Q: What are the primary special features of this storage unit?
A: Highlighted features include five adjustable, removable trays, double insulated glass door, internal LED lighting, comprehensive alarm system (door, temperature, power), battery backup up to 8 hours, heavy-duty castor wheels, and a robust stainless steel exterior.Q: Where is the LuxMed Platelet Storage System most commonly used?
A: This unit is specifically designed for platelet storage in blood banks and hospitals. It operates optimally in non-corrosive, clean room environments requiring continuous monitoring and secure storage.Q: What makes the alarm system on the LuxMed Platelet Storage System exceptional?
A: The system offers an audio-visual alarm mechanism for multiple parameters, including door open, temperature deviation, and power failure. The alarm circuitry remains operational for up to 8 hours via its battery backup, enhancing safety even during power outages.Q: How is the LuxMed Platelet Storage System delivered and installed?
A: After confirming the order and conducting valuation, each unit is professionally packed and dispatched. Upon arrival, the system is handed over and installed onsite with warranty support to ensure seamless integration and immediate use.Q: When is a sample available for prospective buyers?
A: Sample units are available upon request, allowing medical institutions to evaluate system compatibility, build quality, and features before making a bulk purchase decision.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Blood Bank Equipments Category
LuxMed Plasma Thawing Vertical
Price 109000.0 INR / Piece
Minimum Order Quantity : 1 Number
Application : Plasma Thawing in Blood Banks
Voltage : 220 V AC, 50 Hz Volt (v)
Power Supply : Single Phase
Shape : Vertical
LuxMed Blood Donor Coach
Price 150000.0 INR / Unit
Minimum Order Quantity : 1 Number
Application : Mobile Blood Donation and Collection
Voltage : 220 V / 440 V Volt (v)
Power Supply : AC, Generator, Battery backup
Shape : Coach/Bus
LuxMed Blood Bank Centrifuge
Price 95000.0 INR / Piece
Minimum Order Quantity : 1 Number
Application : Laboratory
Voltage : 220 Volt (v)
Power Supply : Electric
Shape : Rectangular

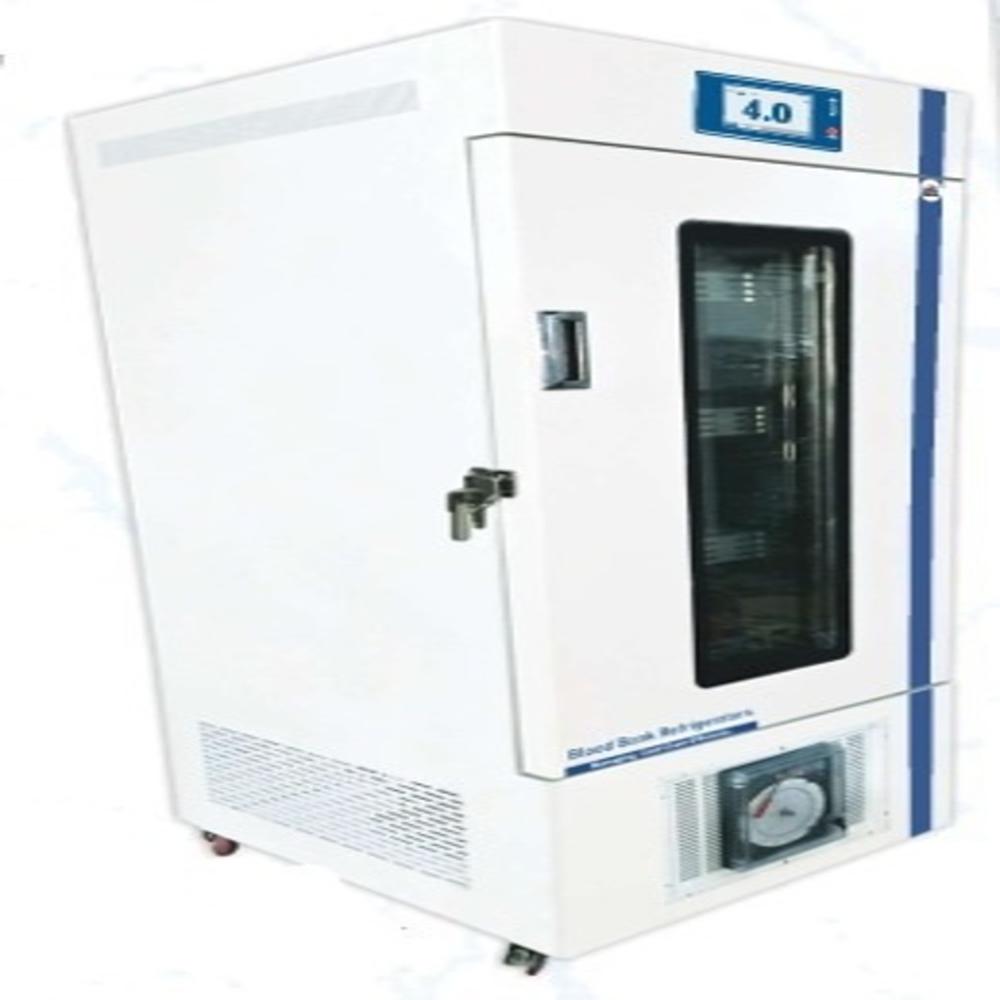

LuxMed Blood Bank Refrigerator
